Roofing & Cladding Solutions

Engineered for excellence, our Roofing & Cladding Solutions combine durability, precision, and aesthetic value—built to protect and perform in every environment.

Technical Overview

Engineered for Reliability & Structural Superiority

At ABC Infratech Engineering Ltd., we manufacture a comprehensive selection of high-grade color-coated trapezoidal sheets, standing seam roof profiles, and architectural wall cladding designed to withstand harsh weather, ultraviolet radiation, and industrial atmospheric corrosion.

Roll-formed from certified Galvalume (AZ150) and pre-painted galvanized steel substrates, our sheets feature deep capillary grooves and precision rib designs that guarantee 100% leak-proof weather protection and structural rigidity across large purlin spacings.

Galvalume AZ150550 MPa High-TensileStanding Seam Available20+ Years Durability
Get Technical Quote Speak with Engineer
Roofing & Cladding Solutions

Key Advantages

Why Choose Our Roofing & Cladding Solutions?

Discover the engineering benefits that make our solutions the trusted standard across industrial projects.

🌧️

Exceptional Weather Resistance

Engineered with anti-capillary side laps and deep water run-off troughs to handle extreme monsoon rains without leakage.

🛡️

Superior Corrosion Protection

55% Aluminum-Zinc alloy Galvalume coating delivers 4x to 6x longer service life compared to standard galvanizing.

🎨

Aesthetic Color Longevity

Coated with premium RMP and PVDF paint systems that resist peeling, blistering, and solar UV discoloration.

💪

High Strength-to-Weight Ratio

550 MPa high-tensile base steel enables wider purlin spans, reducing structural support steel requirements.

🔥

Fire & Wind Uplift Rated

Class A fire resistance and engineered fastener patterns tested for high-wind cyclonic coastal conditions.

🛠️

Complete Flashing & Trims

Supplied with matching ridge caps, barge boards, gutters, downspouts, and self-drilling fasteners.

Profile Specifications

Engineered Cross-Sections & Profiles

Precision roll-formed geometries manufactured to strict architectural tolerances.

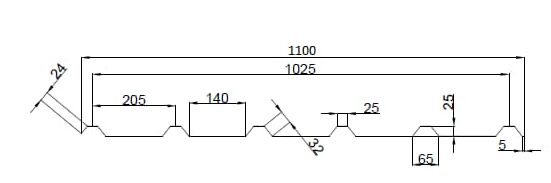

Trapezoidal Roof Sheet Profile

Trapezoidal Roof Sheet Profile

Wide-crest trapezoidal rib profile engineered with anti-capillary drainage grooves. Ideal for standard industrial roof slopes and vertical side-wall cladding.

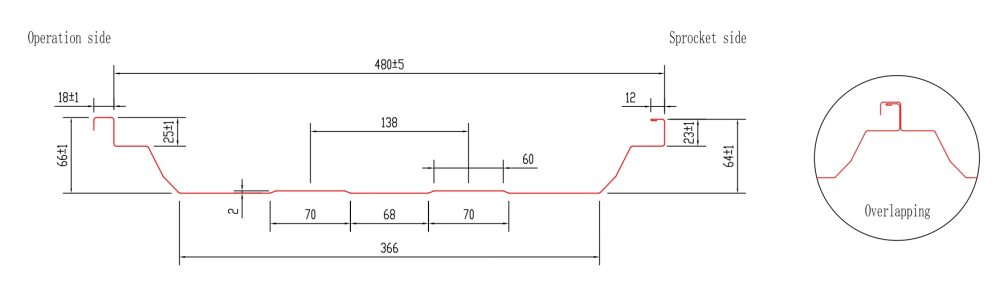

Standing Seam Roof Profile (SSR)

Standing Seam Roof Profile (SSR)

360-degree mechanically double-seamed roofing system with concealed clips and zero through-fastener penetrations, guaranteeing 100% leak-proof performance on low roof slopes down to 1:50.

Direct Estimation

Request a Quick Quote

Tell us your project parameters and get a verified manufacturing estimate within 24 hours.

Need instant telephone consultation?
Call: +91 7861866769

Technical Parameters

Engineering Specifications

Manufactured strictly in compliance with relevant Indian and international engineering standards:

Parameter / Property Standard Specification
Substrate Material Galvalume (55% Al, 43.5% Zn, 1.5% Si) & Pre-Painted Galvanized Steel (PPGI / PPGL)
Yield / Tensile Strength 550 MPa (High-Tensile) or 300 MPa (Soft Quality)
Thickness Range (BMT) 0.45 mm to 0.80 mm Base Metal Thickness
Protective Metallic Coating AZ150 (150 gsm total both sides) / Z120 to Z275 gsm
Paint Coating System Regular Modified Polyester (RMP) / Silicon Modified Polyester (SMP) / PVDF
Standard Colors Off-White, Mist Green, Castle Red, Bare Galvalume, Sky Blue, Dark Grey
Profile Depth 28 mm - 35 mm trapezoidal rib depth; 66 mm Standing Seam depth
Applications Industrial Sheds, Factory Roofs, Warehouses, Cladding, Commercial Canopies

Frequently Asked Questions

Most Popular Questions About Roofing & Cladding Solutions

Quick answers regarding technical specifications, lead times, customizations, and installation.

We offer a wide range including Color Coated Sheets (PPGI/PPGL), Galvalume Sheets, Crimped Sheets, and Curved Roofing Panels tailored for industrial and commercial use.

Absolutely. We manufacture sheets in custom lengths, profiles, and color options to meet your specific design and structural needs.

Yes, we supply a full range of accessories including roof ridges, gutters, fasteners, sealants, washers, and more to ensure complete installation support.

Absolutely. PEBs are highly flexible and can be customized for warehouses, factories, showrooms, aircraft hangars, offices, cold storage units, and more.

Our sheets are primarily designed for industrial, commercial, and warehouse structures but can also be used in farmhouses, sheds, and specific residential applications as per project requirements.

Ready to Deploy Roofing & Cladding Solutions for Your Next Project?

Get in touch with ABC Infratech Engineering Ltd today for direct plant pricing and CAD drawing reviews.
