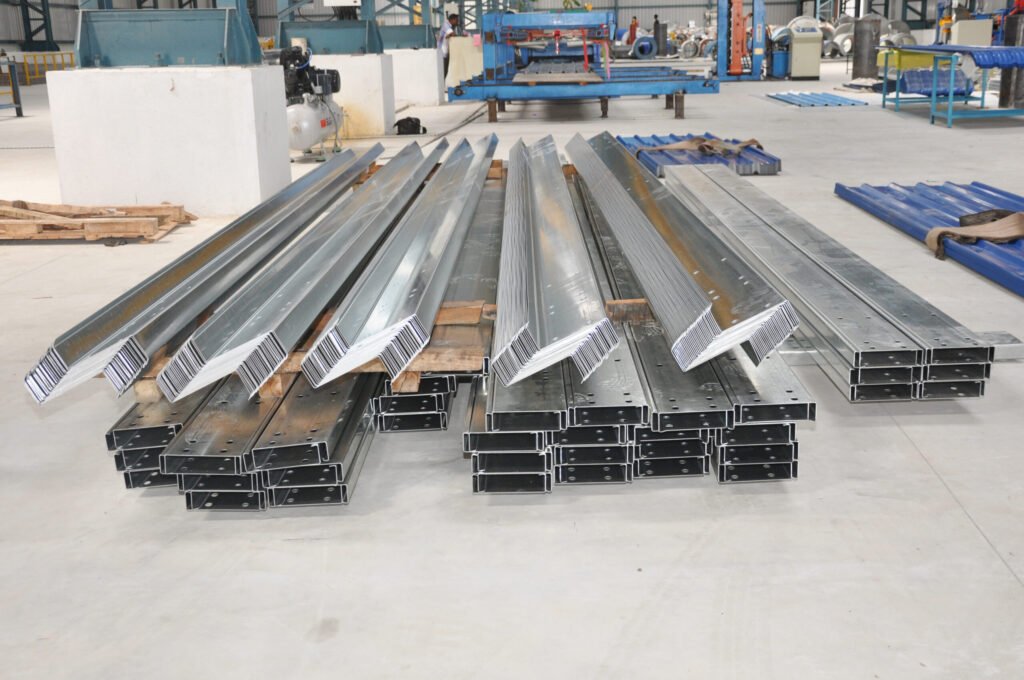

C & Z Purlins

Strong, reliable, and cold roll-formed C & Z purlins engineered for optimal structural efficiency.

Technical Overview

Engineered for Reliability & Structural Superiority

C & Z Purling systems are designed to provide the secondary structural integrity and cladding support needed for modern building designs. Manufactured with high-precision CNC roll-forming lines, they offer efficient, cost-effective solutions for industrial, commercial, and logistical infrastructures.

C & Z Purlings provide superior strength, long-lasting corrosion resistance, and pre-punched hole patterns, ensuring a seamless fit with Pre-Engineered Steel Building (PEB) systems. Made from high-yield structural steel, they optimize load transfer while reducing framing steel weight by up to 35% compared to traditional hot-rolled channels.

High-Yield 345-450 MPaPre-Punched CNC HolesContinuous Overlapping ZGSM 120-275 Galvanized
Get Technical Quote Speak with Engineer
C & Z Purlins

Key Advantages

Why Choose Our C & Z Purlins?

Discover the engineering benefits that make our solutions the trusted standard across industrial projects.

💪

Superior Strength-to-Weight

Cold roll-formed high-tensile steel provides high section modulus while reducing dead load on main rafters.

⏱️

Fast Bolt-On Erection

Accurate CNC pre-punched holes on web and flanges allow rapid, error-free bolting on site without cutting or welding.

🔗

Continuous Z-Purlin Lapping

Z purlins can be overlapped at intermediate rafters, creating a continuous beam effect that increases load capacity.

🛡️

Corrosion-Resistant Zinc Coating

Continuous hot-dip galvanizing protects purlins from rust in industrial, chemical, and humid environments.

📐

Custom Depth & Thickness

Manufactured to precise project lengths and depths up to 350 mm, eliminating on-site cutting waste.

💡

Economical Structural Design

Saves 25% to 40% in structural steel weight compared to conventional heavy hot-rolled ISMC channels.

Profile Specifications

Engineered Cross-Sections & Profiles

Precision roll-formed geometries manufactured to strict architectural tolerances.

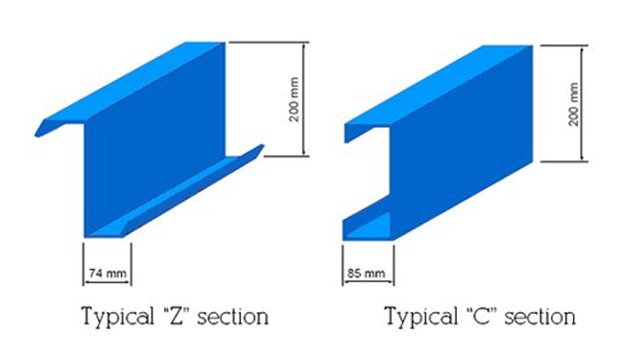

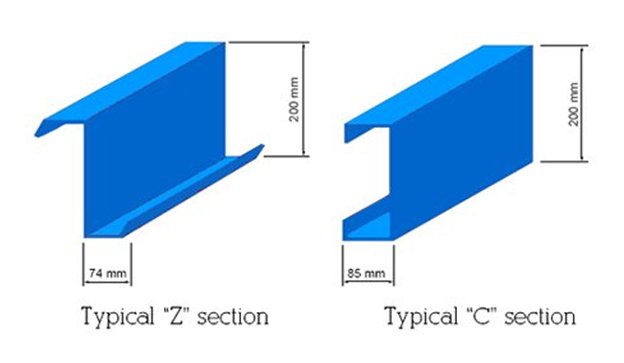

C & Z Section Profile Drawings

C & Z Section Profile Drawings

Geometric profile cross-section illustrating C-section girt profiles and Z-section purlins with reverse lip stiffeners for continuous lap connections.

Direct Estimation

Request a Quick Quote

Tell us your project parameters and get a verified manufacturing estimate within 24 hours.

Need instant telephone consultation?
Call: +91 7861866769

Technical Parameters

Engineering Specifications

Manufactured strictly in compliance with relevant Indian and international engineering standards:

Parameter / Property Standard Specification
Web Depth Range 100 mm to 350 mm
Flange Width 40 mm to 100 mm
Lip Dimension 15 mm to 25 mm
Thickness Range 1.50 mm to 3.50 mm
Material Grade High Tensile Structural Galvanized Steel, Yield Strength 345 to 450 MPa
Zinc Coating (GSM) 120 to 275 GSM
Hole Punching CNC pre-punched elongated slots (18x22 mm) to suit standard metric bolts
Standard Applications Roof purlins, side wall girts, mezzanine floor beams, solar tracker structures

Frequently Asked Questions

Most Popular Questions About C & Z Purlins

Quick answers regarding technical specifications, lead times, customizations, and installation.

C & Z Purling are structural components used in metal roofing and building systems. They provide support for roof panels by offering a reliable and cost-effective solution for large-span roofs in warehouses, industrial buildings, and other structures.

C & Z Purlings are preferred for their strength, flexibility, and ease of installation. They are versatile and can be used in a variety of building types, offering significant cost savings compared to traditional framing methods.

C & Z Purlings offer faster construction times, reduced material waste, and improved durability. These purlings also contribute to greater load-bearing capacity and are ideal for buildings that require long spans between supports.

Yes, C & Z Purlings can be customized based on the specifications of your building project. Depending on the load requirements and the design of the structure, we can provide purlings in different sizes and gauges.

Our team of experts can assess the load requirements and structural design of your building to recommend the most suitable C & Z purling system. We ensure that our purlings meet all safety and performance standards for your specific needs.
